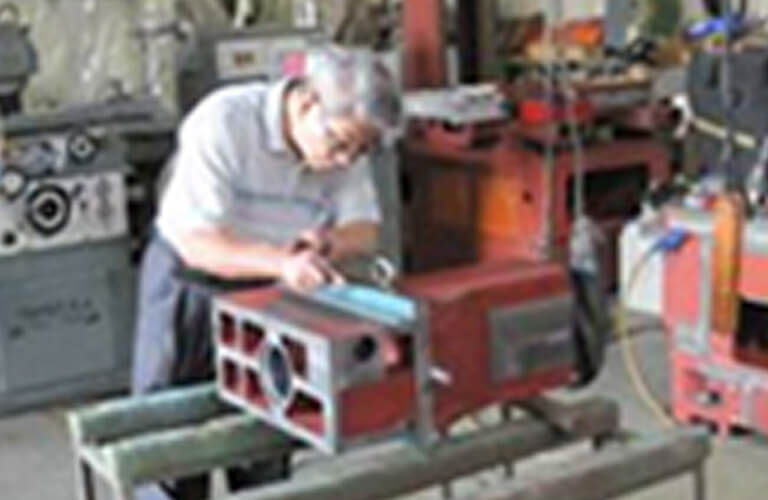

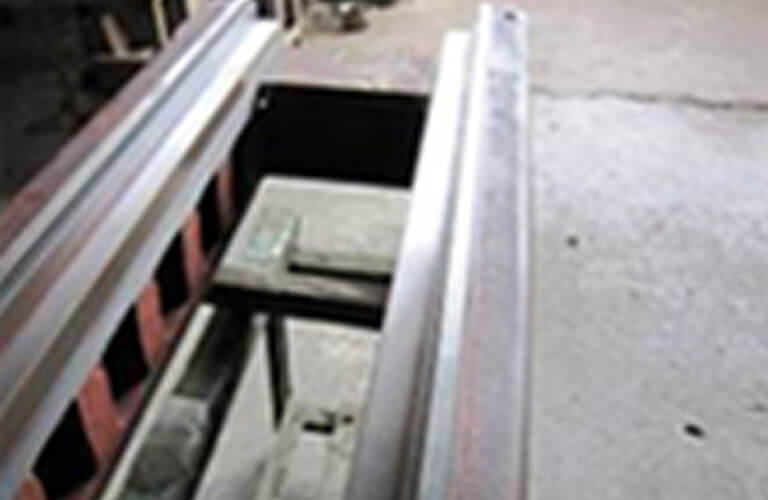

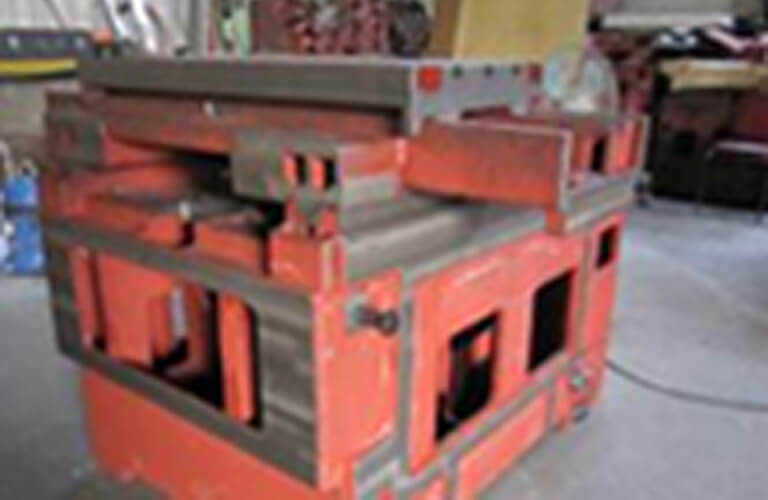

Machine Construction
With the operation of the program specially developed, high affinity, ease of operation.
| Model Description | PSG-64CNC / Description |
|---|---|
| General Capacity | |
| Table size | 600x400mm |
| Max.grinding length | 650mm |
| Max.grinding width. | 420mm |
| Distance from table surface to spindle center | 500mm |
| Longitudinal Movement | |
| Table speed(approx) | 25 M/min |
| CrossFeed Movement | |
| Continuous feed(approx) | 60HZ 1000mm/min |
| Handfeed 1.gra. | 0.001/0.01/0.02mm |
| Least input increment | 0.001mm |
| Vertical Downfeed | |
| Handfeed 1.gra. | 0.001/0.01/0.02mm |
| Rapid feed | 1000 mm/min |
| Least input increment | 0.001mm |
| Grinding Wheel | |
| Wheel size(diaxwidthxbore) | 355x38x127 mm |
| Wheel speed | 50HZ 1500 r.p.m |
| 60HZ 1800 r.p.m | |
| Motors | |
| Spindle Motor | 5HP |
| Cross feed Motor | AC 0.75 KW |
| Hydraulic Motor | 2HP |
| Elevation Motor | AC 1KW |
| Weight | |
| Net/Packing gross | 3000kgs |
| Packing size | |
| Length x width x heigh | 2700x2797x2170mm |
Standard Accessories
Grinding Wheel with flange
Flange extractor
Wheel Balancing arbor
Wheel Balancing base
Wheel dresser with diamond
Leveling screw and plates
Tooling box and tools
Working lamp
Optional
Electro Magnetic Chuck
Auto Demagnetizer for magnetic chuck
Coolant System
Dust & coolant unit
Auto paper strip filter and magnetic separator with coolant system
Magnetic separator with coolant system
Paper Filter with coolant system
Hydraulic Oil Cooler
Fully enclosed splash guard
